Product Description

FFF Fit, form & functional replacement to TE Connectivity Model 4515, 4525, 4515DO & 4525DO Pressure Sensors.

FFF Fit, form & functional replacement to Honeywell SSC Pressure Sensor range.

FFF Fit, form & functional replacement to the First Sensor HCLA Pressure Sensor range.

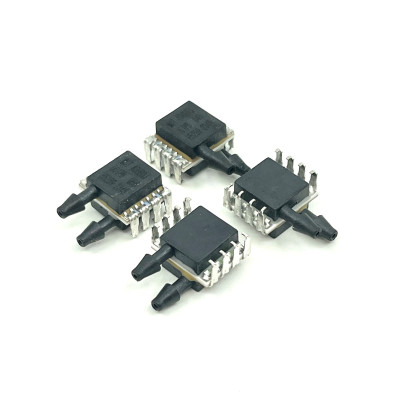

SA19 High Accuracy piezoresistive silicon pressure sensor, offering an analogue/digital 14-bit output for reading pressure over the specified full scale pressure span and temperature range. SA19 Series is fully calibrated, and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz. SA19 Series is calibrated over the temperature range of -10°C to 60°C. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure differential and gauge pressures. Differential versions allow application of pressure to either side of the sensing diaphragm. Gauge versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. SA19 Series sensors are intended for use with non-corrosive, non-ionic working fluids.

SA19EC High Accuracy piezoresistive Silicon Ceramic pressure sensor, offering an analogue/digital 16-bit output for reading pressure over the specified full scale pressure span and temperature range. SA19EC Series is fully calibrated, and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 2 kHz. SA19EC Series is calibrated over the temperature range of -10°C to 60°C. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure differential and gage pressures. Differential versions allow application of pressure to either side of the sensing diaphragm. Gauge versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. SA19EC Series sensors are intended for use with non-corrosive, non-ionic working fluids.

SA19HD High Accuracy piezoresistive silicon ceramic pressure sensor, offering an analog/digital output for reading pressure over the specified full scale pressure span and temperature range. SA19HD Series is fully calibrated, and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 50Hz. SA19HD Series is calibrated over the temperature range of -10°C to 60°C. The sensor is characterized for operation from a single power supply of 3.3 Vdc. These sensors measure differential and gage pressures. Differential versions allow application of pressure to either side of the sensing diaphragm. Gauge versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. SA19HD Series sensors are intended for use with non-corrosive, non-ionic working fluids.

SA82 Series is a temperature compensated, mV output, ceramic mounted pressure sensor packaged in a rugged Dual In Line package. SA82 uses a silicon MEMS pressure sensor bonded to a ceramic substrate containing thick film resistors that are uniquely laser trimmed for each sensor. Incorporating a flexible design, the SA82 Series is available with side port, top ports or manifold mounted ports and can be mounted with SMT pin, Dual in line pin or in line pin to allow OEMs to optimize their board design. The SA82 series is powered using constant voltage, the tight span control will ensure sensor field interchangeability. The SA82 series superior die performance, coupled with rugged ceramic substrate ensures long term stability with superior temperature performance over wide operating range.

SA19 now in stock available to purchase on Strainsense Store.
