DSC digitiser module

Product Description

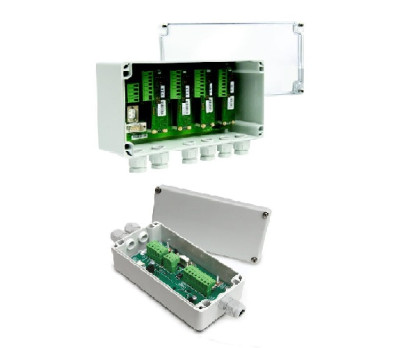

The model DSC slimline digital strain cards are designed for use with strain gauge sensors such as pressure transducers, load cells and torque sensors, with option of two enclosures.

The digital load cell or strain gauge digitiser cards (DSC) have high speed, high precision strain gage signal conversion capabilities with linearization and temperature compensation of the sensor. Try the ready to go Evaluation Kit which includes one free DSC.

Available formats include RS232, RS485, ASCII, Modbus, CAN and MantraCAN (J1939). Ultra high performance, resolution of 1 part in 400,000 (18bit), High speed, up to 500 updates per second (streaming), Auto calibration or direct entry of mV/V with linearisation, Programmable dynamic filter, Temperature compensation, Peak and trough (valley) recording, Remote shunt calibration by software command or digital input, Card dimensions 20 x 87.4 x 12 mm
