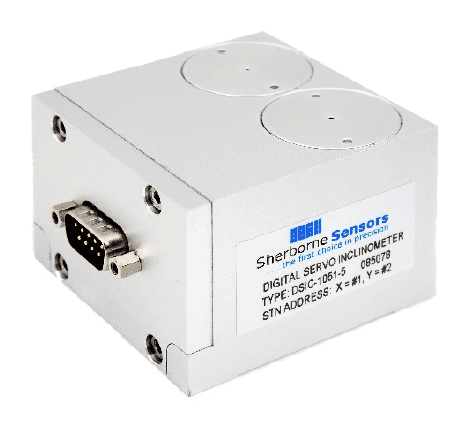

DSIC Servo Inclinometer digital output

Product Description

The DSIC utilises a servo-inclinometer element to sense inclination to a very high accuracy with almost zero hysteresis. Internal temperature and linearity compensation is programmed into the DSIC during calibration. This ensures that the output is never outside a 0.08° error margin from true input angle, at any temperature and any angle within its compensated range. Industry standard RS485 output and 19-bit analogue to digital conversion. Options include, single or dual axis, Input supply voltage 12 or 24 VDC, Ranges +/-5 to +/-60 Degrees.
