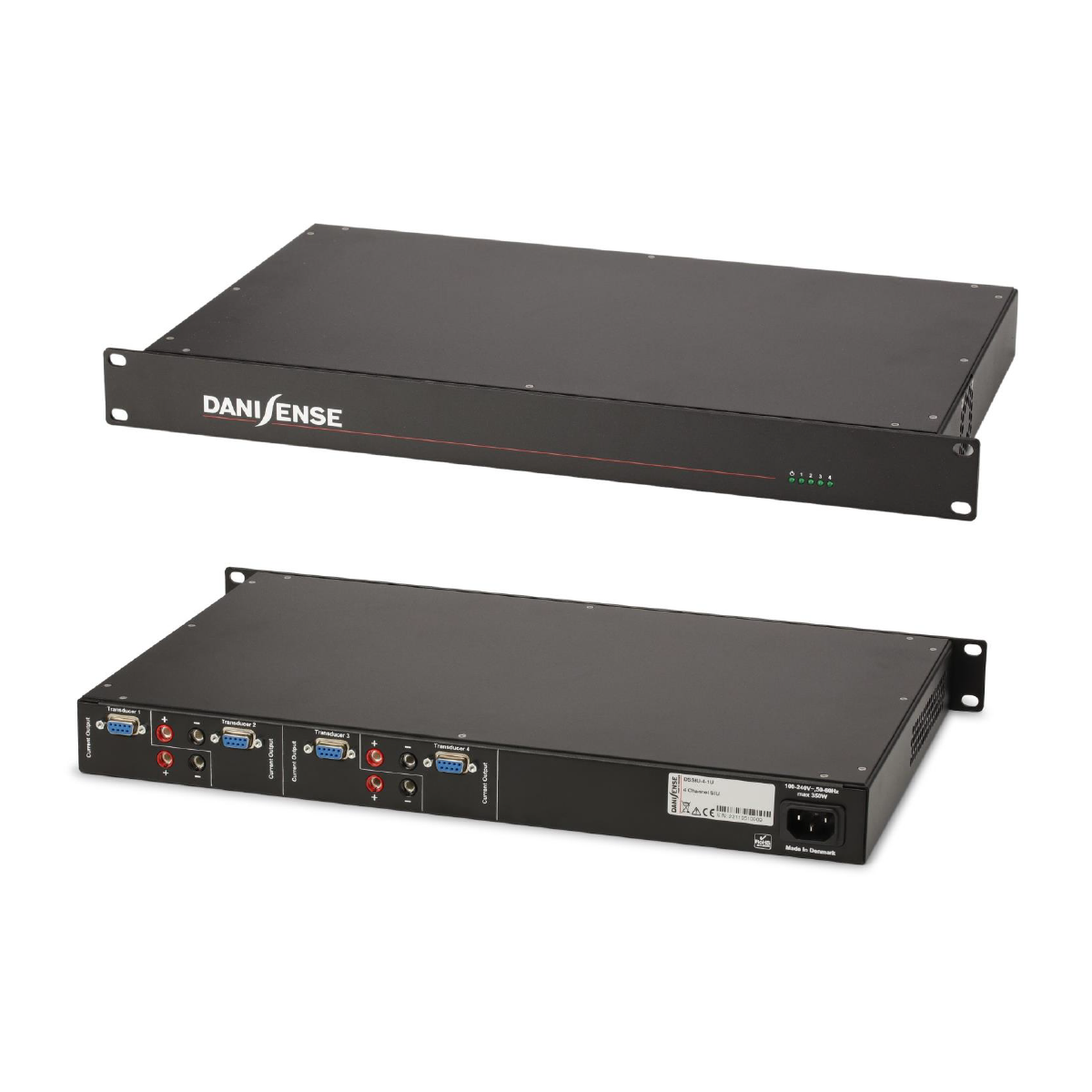

Current Transducer Interface Unit 4 Channels Current Output

System interface unit, DSSIU-4-1U

AC input voltage or 120–370V DC input voltage
Compact 19” rack mount 1U height
Only current output
Front LEDs indication of normal operation

Categories: Sensors Current Transducers / Current Clamps Current Transducers Power Supplies

Product Description

Complete 4-channel system interface unit for ultra-stable, high precision fluxgate technology DS series current transducers. Powers up to 4 x DS50 to DS2000 at the same time.

Introducing the DSSIU-4-1U, the perfect solution for those in need of a compact and versatile system interface unit. The DSSIU-4-1U offers four channels for current transducers’ output signals, which can be easily accessed via 4mm banana plugs.

The DSSIU-4-1U features front LEDs that indicate normal operation for each transducer, ensuring that users can quickly and easily monitor the status of their equipment. Additionally, there is a power LED that provides a clear indication of the unit's overall status.

With its universal autorange, the DSSIU-4-1U can accommodate a wide range of input voltages, including 100-240V AC 50/60Hz and 120–370V DC. This makes it an ideal choice for users who require flexibility in their power supply.

Overall, the DSSIU-4-1U is an excellent choice for anyone looking for a reliable and versatile system interface unit. Its compact size, ease of use, and flexible power options make it an ideal choice for a wide range of applications.
