Product Description

Dedicated 6-channel system interface unit for ultra-stable, high precision fluxgate technology DS series current transducers. Powers up to 6 x DS50 to DS2000 at the same time.

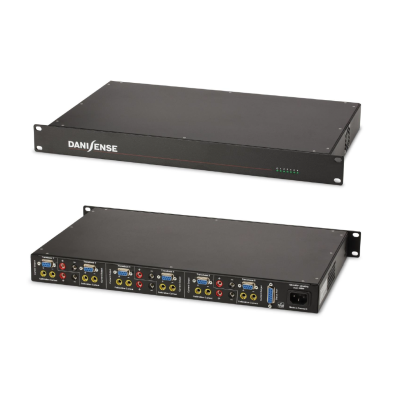

Introducing the DSSIU-6-1U, a reliable and versatile system interface unit designed for use in a variety of applications. With a compact 19" rack mount 1U height, this unit is perfect for those who require a space-saving solution for their current transducers’ output signals.

The DSSIU-6-1U offers six channels for current transducers’ output signals, which can be easily accessed via 4mm banana plugs. Additionally, users have the option of individual or serial access to calibration windings of all six transducers via 4mm banana plugs, providing greater flexibility and control over their equipment.

To further enhance usability, the DSSIU-6-1U features a 15-pin DSUB connector that provides access to isolated status signals of each transducer and power. This allows users to monitor the status of their equipment with ease and make adjustments as needed.

With front LEDs that indicate normal operation for each transducer and a power LED for the unit as a whole, users can quickly and easily monitor the status of their equipment. Plus, with a universal autorange that accommodates input voltages ranging from 100-240V AC 50/60Hz to 120–370V DC, the DSSIU-6-1U is a flexible solution that can adapt to a wide range of power supply needs.

Overall, the DSSIU-6-1U is an excellent choice for anyone looking for a reliable and versatile system interface unit. Its compact size, individual or serial access to calibration windings, and flexible power options make it an ideal choice for a variety of applications.
