Product Description

Fully configurable dedicated 1U high 6-channel system interface unit for ultra-stable, high precision fluxgate technology DS series current transducers. Powers up to 6 x DS50 to DS2000 at the same time.

Supports calibration windings and has 6 factory configurable modules for voltage output modules (VOM).

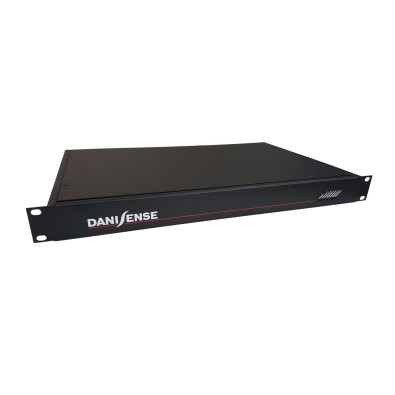

Introducing the DSSIU-6-1U-V, a powerful and versatile system interface unit designed for those who require precise and reliable voltage output from their current transducers. With a compact 19" rack mount 1U height, this unit is perfect for those who require a space-saving solution for their equipment.

The DSSIU-6-1U-V offers six channels for current transducers, with output voltage available in XLR mini connectors for precise and accurate readings. Additionally, users have the option of individual or serial access to calibration windings of all six transducers via 4mm banana plugs, providing greater flexibility and control over their equipment.

To further enhance usability, the DSSIU-6-1U-V features a 15-pin DSUB connector that provides access to isolated status signals of each transducer and power. This allows users to monitor the status of their equipment with ease and make adjustments as needed.

With six slots for voltage output modules (VOM), the DSSIU-6-1U-V is capable of converting transducer’s output current to a voltage with ultra-stable 1V or 10V voltage output modules VOM, providing accurate and reliable readings for a variety of applications. Forced cooling ensures stable temperatures for VOM and reliable operation.

With front LEDs that indicate normal operation for each transducer and a power LED for the unit as a whole, users can quickly and easily monitor the status of their equipment. Plus, with a universal autorange that accommodates input voltages ranging from 100-240V AC 50/60Hz to 120–370V DC, the DSSIU-6-1U-V is a flexible solution that can adapt to a wide range of power supply needs.
