Product Description

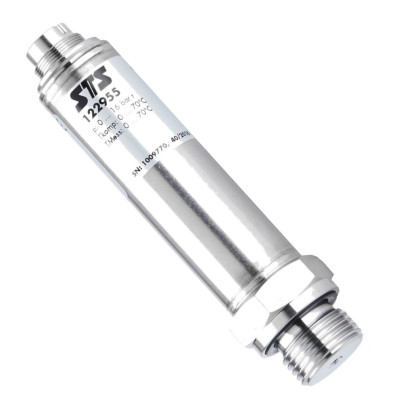

The model DTM.OCS is a high precision pressure and temperature sensor with a standard Modbus RTU 8n2 protocol and RS485 digital interface. Both the zero and span can be adjusted through the modbus commands. Power supply 9-30 VDC with pressure output 20 bit and temperature to 0.1 degree C. Baudrate is 9600 bps. The sensor is a modular design allowing configurations to suit your application with material options of 316L stainless steel or Titanium, process connections G1/4", G1/2" or NPT. Measurement range 0-200 mbar to 0-100 bar gauge, absolute or sealed gauge. Accuracy depends on selected range but 2-100 bar ranges can achieve 0.03% full scale.
