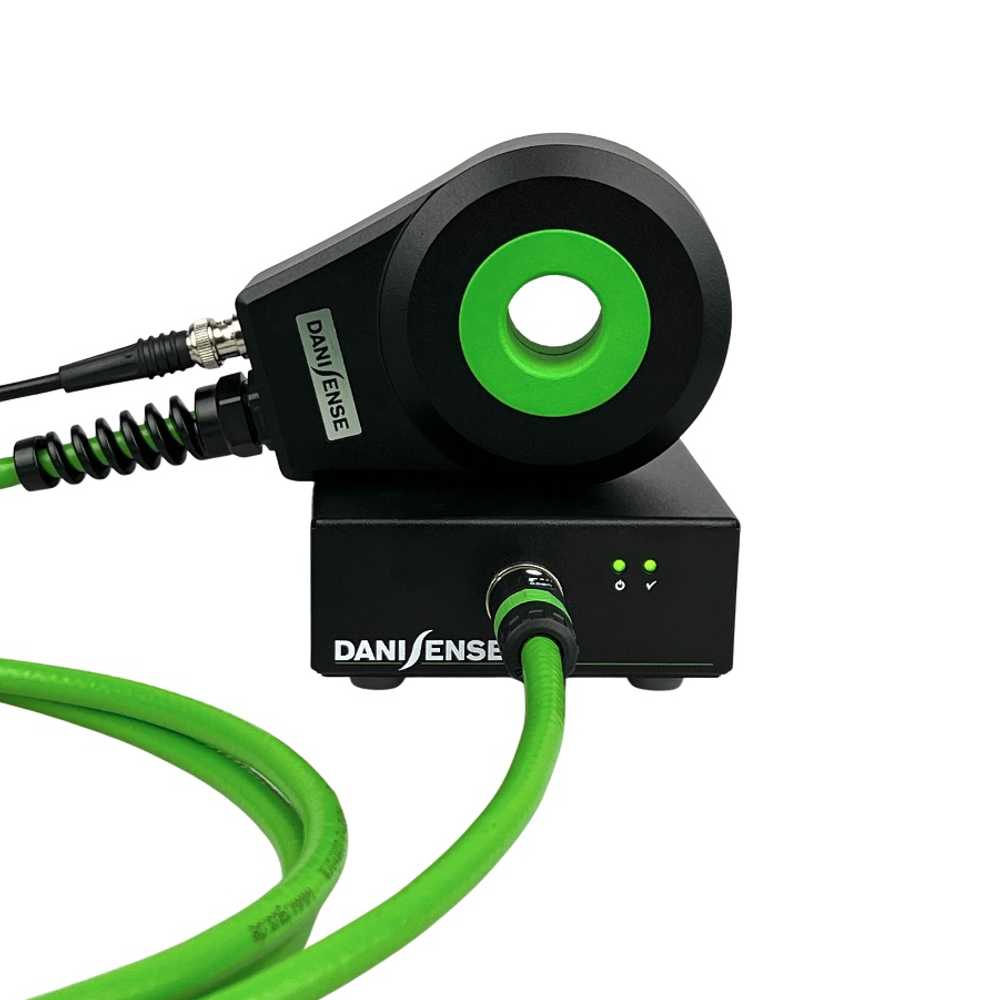

Current transducer DW500UB-2V
Product Description
High precision wide bandwidth DC current transducer (DCCT) measuring up to 750 A currents and continuously measuring 500 A currents with a linearity error less than 15ppm.
Using a special high frequency transducer head, the DW500UB-2V has a very wide bandwidth up to 10MHz.
Phase compensation is made easy thanks to a near constant phase delay of around 12.5ns, including a 2m coax cable.
Based on the ultra stable Danisense closed loop fluxgate technology, the DW500UB-2V has very low offset and ultra low drift.
Built in a compact aluminium housing, it provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
