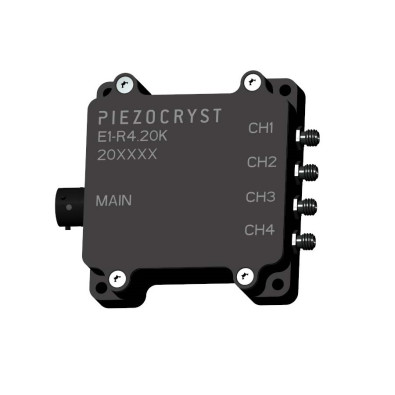

E1-R4.20K Miniature Charge Amplifier

Product Description

The Piezocryst 4 channel racing amplifier E1-R4 is a miniaturised and lightweight charge amplifier for monitoring and control tasks in the most demanding environments such as in-vehicle use. The lightweight but rugged design allows for reliable operation under such harsh conditions. Benefiting from the experience with amplifiers for R&D tasks, the E1-R4 integrates well-known features for highly dynamic measurements, such as a 50 kHz bandwidth and continuous drift compensation which makes manual resets obsolete, into a compact form factor.

Output is a very simple 0 to 5V (Zero level 2.5V)

The range is factory set according to the sensor sensitivity and the maximum expected peak pressure of the sensors to be used.
