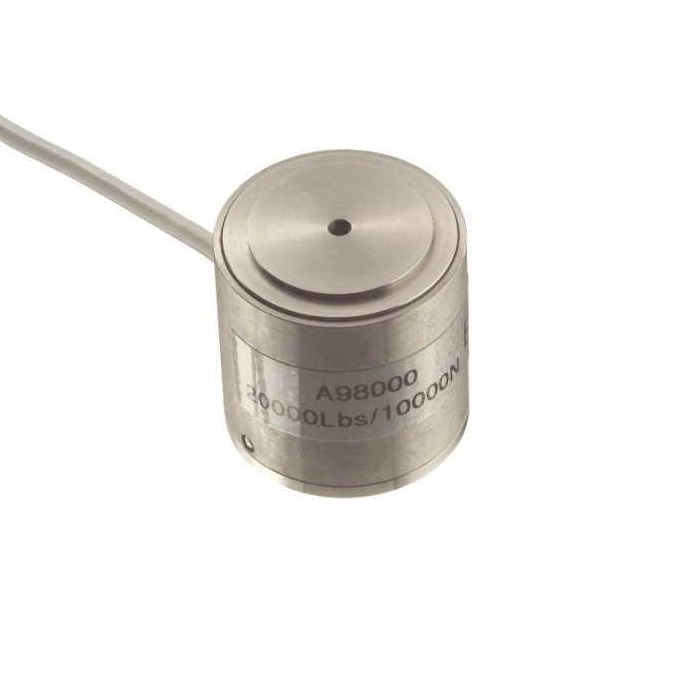

ELHS high output

Product Description

The model ELHS load cell is a compact package able to fit into many applications where others cannot. The low noise Wheatstone bridge consists of piezoresistive strain gages which provide 200 mV of typical full scale output with a compact design, an extreme stiffness and superior resolution. The ELHS is provided with either SAE or metric threads for tension and compression applications.

ELHS-B is the compression body style with ELHS-T is the tension & compression body style. Care should be exercised to isolate your ELHS from off-axis loads. The ELHS is a Poisson column design providing low full scale input deflection and superior resolution. Designed specifically to provide high resolution and low deflection. The ELHS can be configured with a variety of options to fine tune the instrument to your application: select from several standard compensated temperature ranges, input voltages, lead lengths or specify entirely unique combinations of these options.
