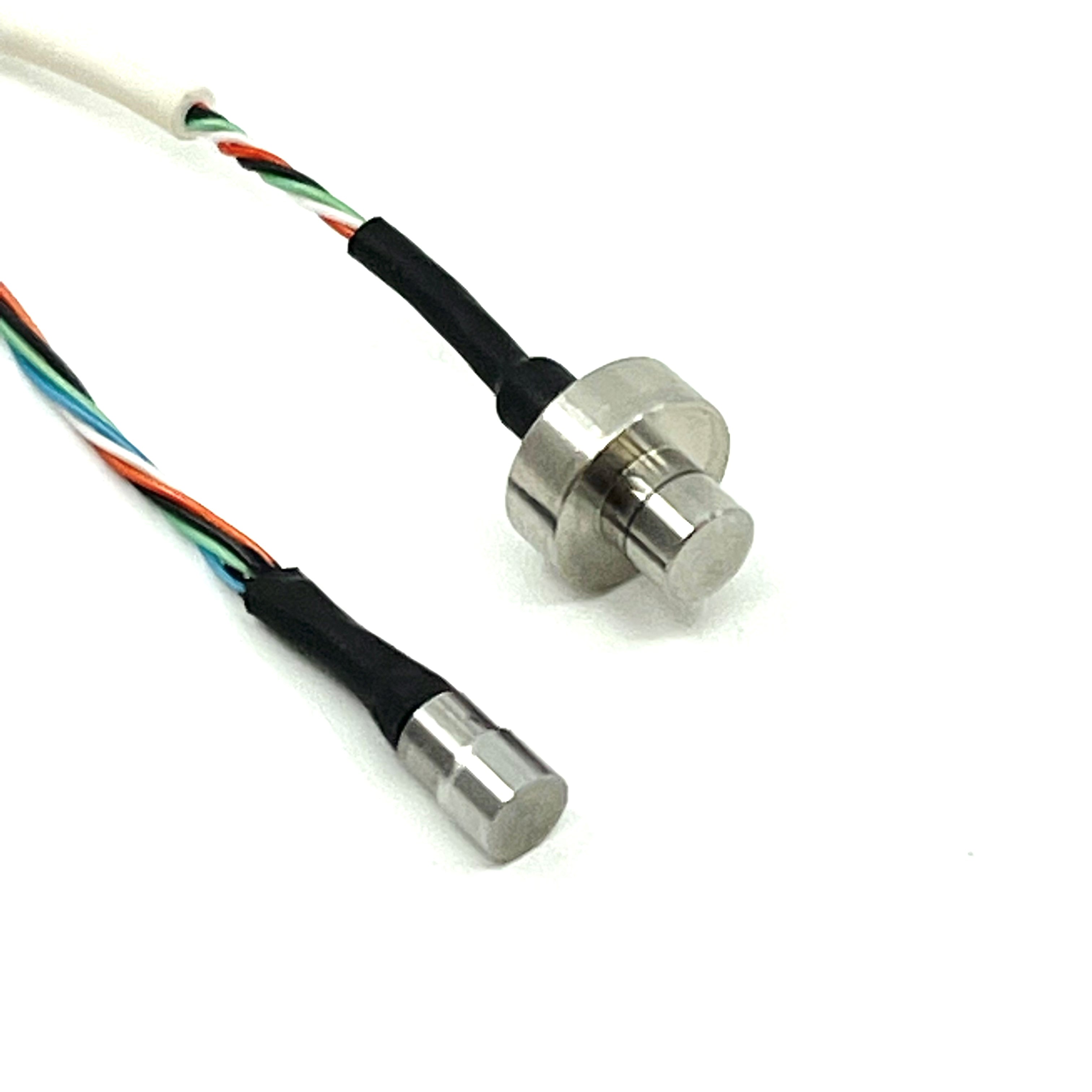

EPB micro miniature

Product Description

The model EPB is an extremely small pressure probe sensor, small profile of 3.18mm, stainless steel, flush mount transducer designed for general media. Frequency response of 11-80 kHz depending on pressure range selected makes it suitable for both static and dynamic measurements. Depending on size requirements the temperature compensation can be internal or fitted in a temperature compensation module. The sensor is non threaded and is fitted using rtv or epoxy compounds or a rear mounted nut, special designs are available on request. Applications include automotive testing, drilling tools, test and evaluation, research, pore pressure, product design or for testing where small size is the biggest issue.
