EPRB-2 low pressure

Product Description

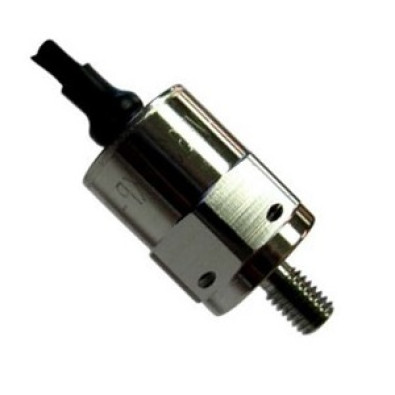

The model EPRB-2 is an ultra-miniature pressure transducer of 100% stainless steel welded construction. It is designed for severe environments where minimum size and light weight are required. Multiple interfaces such as pressure ports and electrical outputs, connection through cables or connectors have been designed to offer a wide range of adaptability to customer’s standards. EPRB-2 models have amplified output 0.5 to 4.5 VDC, with supply options of either 5Vdc ratiometric or 8-30Vdc for use on vehicle, military, test equipment or test benches. On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.
