Combined pressure & temperature sensor
Product Description

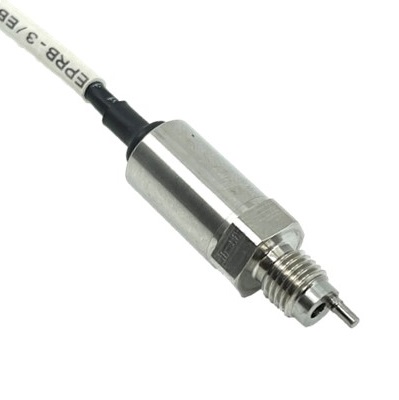

The model EPRB-3 is an ultra-miniature pressure transducer of 100% stainless steel welded construction. It is designed for severe environments where minimum size, light weight and high shock/vibration are required.
The EPRB-3 design is constructed with an independent platinum PT1000 probe to sense the physical media temperature. EPRB-3 models have amplified output 0.5 to 4.5 VDC, and supply voltages of 5Vdc or 8-30Vdc for use on vehicle, military, test equipment or Motorsport (FIA homologated).
The standard product is suitable for use to 150 Deg C however, contact us for requirements to 175 Deg C or replacing the Kulite ETL series.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
