Ethercat slave interface module

Product Description

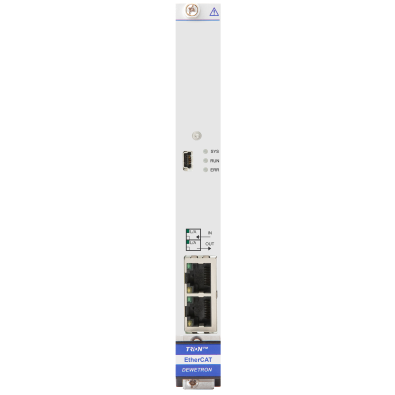

The TRION-EtherCAT-1-SLAVE is a communication interface module for Dewetron data acquisition chassis. It is used in combination with DEWETRON OXYGEN software to provide measurement data in an EtherCAT network via PDO mechanism.

Up to 100 user selectable measurement channels can be provided, combined with a high accurate timestamp. Isolation voltage is 1000VDC.

The measurement data is provided via IEEE 754 Floating-Point Number. The configuration is available via a separate ESI-File for use on the EtherCAT master. Additionally, the input SDOs allow a selection of a measurement setup, the measurement (recording) can be triggered by a PDO control word.

The TRION-EtherCAT-1-SLAVE module is ideal for automated test and measurement facilities and laboratories. Sectors include aerospace, automotive, power and rail.
