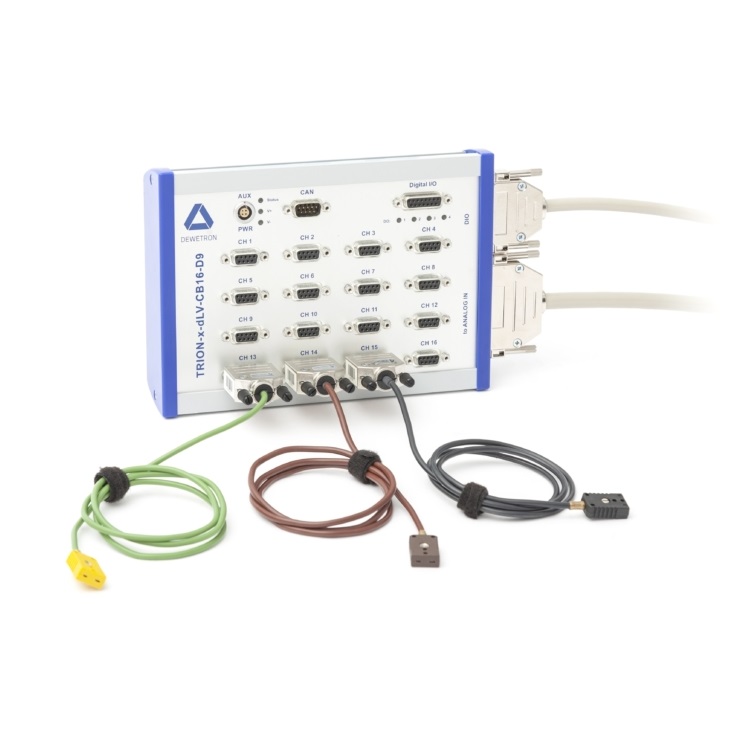

EXPANSION CONNECTOR BOX TRION-x-dLV-CB16-D9

Expanion box for TRION-1802-dLV-32 and TRION-1600-dLV-32 modules

16 channel sensor connection box
Precision ±5 V excitation voltage with remote sense per channel
MSI support (Modular Smart Interface)
Auxiliary sensor supply

Categories: Data Acquisition DAQ Systems Input Modules Differential Modules Power Analyzers Additional Input Modules Differential Modules

Product Description

Feature expansion connector box for TRION-1802-dLV-32 and TRION-1600-dLV-32 modules. It has 16x D-SUB-9 sockets for analogue inputs or MSI adapters. Each channel has differential voltage measurement (up to ± 10 V and via optional MSI up to ± 200 V). Using optional MSI adapters inputs for strain gauge and bridge sensors, IEPE, LVDT and RVDT, thermocouple, charge, and RTD can be connected. It also has 1x D-SUB-9 plug for CAN (if available on TRION module) and 1x D-SUB-15 socket for digital I/O and/or counter inputs. Includes 2 connection cables (1m length) to TRION-x-dLV module.

For use with DEWE2 or DEWE3 data acquisition system and Oxygen data acquisition software.
