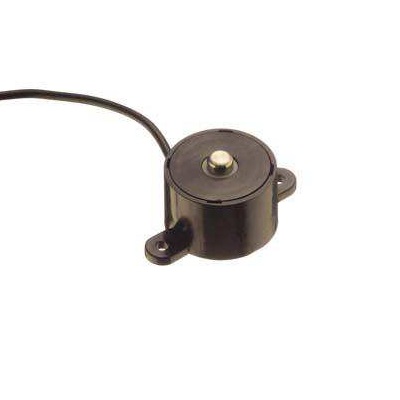

FC22 compression

Product Description

The model FC22 is a medium compression force sensor. The FC22 offers normalized zero and span for interchangeability and is thermally compensated for changes in zero and span with respect to temperature. The FC22 incorporates Microfused technology which employs micro-machined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. The FC22 measures direct force and is therefore not subject to lead-die fatigue failure common with competitive designs which use a pressure capsule embedded within a silicone gel-filled cavity. Operating at very low strains, Microfused technology provides an essentially unlimited cycle life expectancy, superior resolution, and high over-range capabilities. Please refer to the FS20 for lower force applications or the FC23 for higher force applications.
