FlexRay Plugin

Product Description

The usage of FlexRay was never this easy! With the Flexray plugin for Oxygen you can read raw FlexRay frames and decode them into individual signals with the support of the FlexRay adapters from Vector (e.g. VN7610). To fully adjust to your needs, the channels for decoding can not only be selected online but it also works offline.

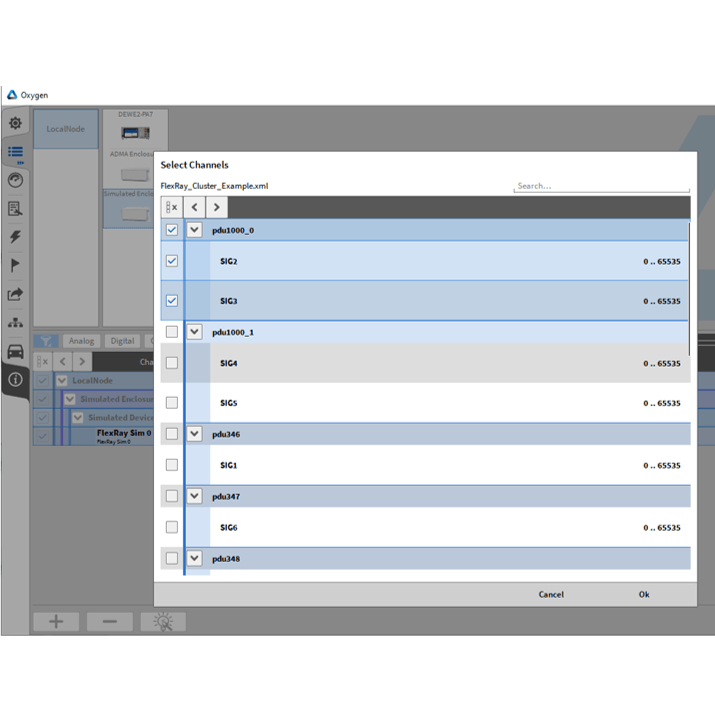

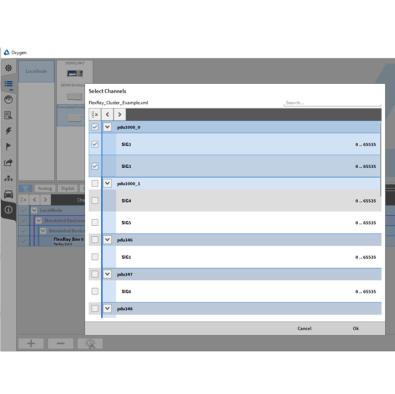

To set up in Oxygen, click on the Load Fibex…button to select the fibex file. The fibex file must be compatible with Fibex 2.0 to 4.1.2 Standard for description file (ASAM MCD-2NET). Then simply select the channels from the fibex file that shall be decoded during data acquisition. It is possible to select only certain channels and messages or all channels.

Channels can then be displayed and / or recorded in the data set.
