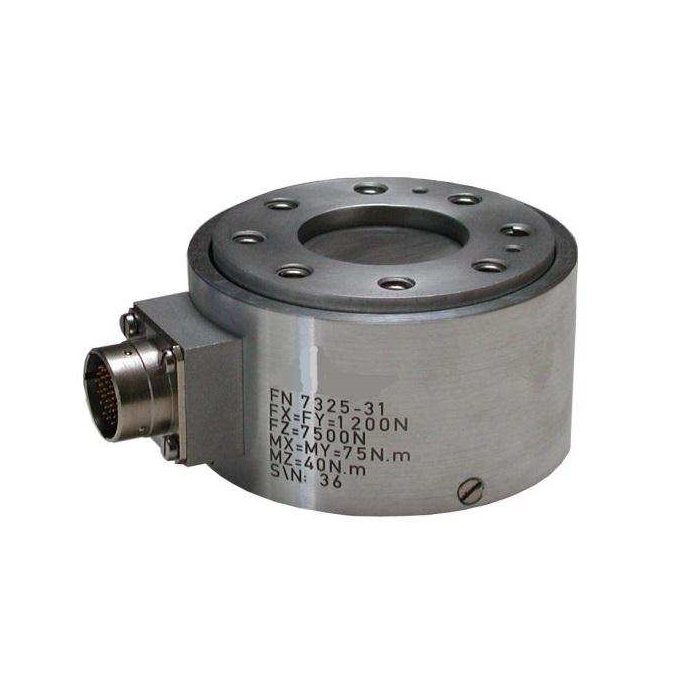

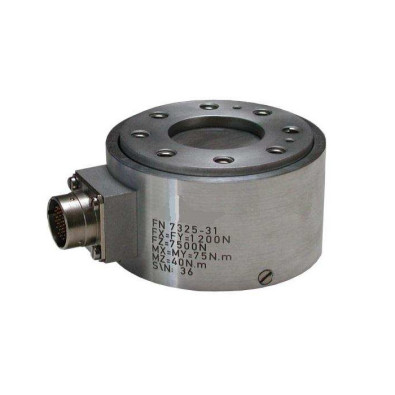

FN7325 multi-axial

Product Description

The multiaxial model FN7325 measures force from 0-5 kN to 0-250 kN along three axes as well as the corresponding torque from 0-200 Nm to 0-7000 Nm. The FN7325 is simple to use and install and in many diverse applications circumvents the necessity of employing multiple single-axes units.

The FN7325 is a multiaxial sensors based on strain gages technology assembled in Wheatstone full bridges. Each sensor is able to measure up to 6 channels Fx, Fy, Fz, Mx, My & Mz which can be selected by customer, as example FN7325-M6- ZLM corresponds to a 3 channels (Fz, Mx & My) with a M6 sensor design. Multiple designs and options can be adapted to this sensor such as integrated amplifier (A1 or A2) or separated connectors or cable outputs. Its interfaces can also be modified to fit customers' specifications.
