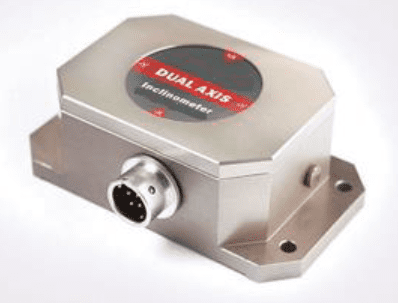

HCA526T Dual axis Inclinometer high accuracy

Product Description

HCA526T-CANopen is a high accuracy dual-axis inclinometer which inherits the stability of the SCA series. The accuracy and the temperature drift stability is enhanced by a built-in high-precision 16bit A/D differential converter. A Comprehensive filtering algorithm can measure the angle of sensor output relative to the horizontal and pitch tilt. An ADI temperature sensor provides comprehensive adjustment for temperature drift to ensure exceptional repeatability in low and high temperature environments. The output frequency response is up to 100Hz depending on range, higher versions available on request. The products are industrial-grade products, reliable, scalable. Suitable for a variety of harsh industrial control environments. A single axis version is also available (HCA516T), refer to data sheet.

Please see latest version HCA7 Series.
