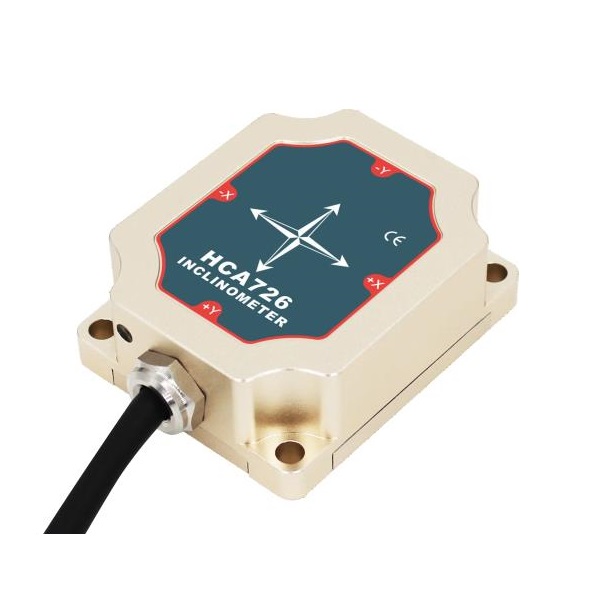

HCA7 Series Inclinometer High Accuracy

High accuracy inclinometer digital output

Ranges: up to ±180°
Output: RS485, RS232 and CANBUS
High accuracy to 0.003 degrees
High shock resistance

Categories: Sensors Position Sensors Inclinometer Sensors / Tilt Sensors Inclinometers Digital Output

Product Description

The HCA7 series is a precision accuracy inclinometer using state of the art MEMS silicon technology. Internal linearity correction creates a resolution to 0.001° and high accuracy output signal to 0.003°. Wide-range output up to ±180° (single axis only) makes the HCA a very popular sensor for a multitude of applications.

The MEMS sensing element creates a real-time output with simple wiring with a package that is easy to mount and use. Using Digital signals RS485, RS232 and CANBUS with handshake or streaming protocols allows versatility in connection.

Enclosed in a high-quality aluminium anodised case with a fully potted design and IP67 connector for ease of installation. Customisable measurement ranges and cable / connector options and with competitive pricing makes this a very popular high-resolution sensor.
