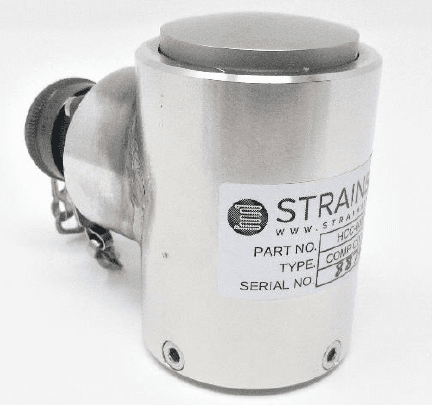

High capacity compression cell
The HCC load cell is a column load cell typically suited for high measurement range applications where capacities vary from 10’s to 1000’s of tonnes. We recommend using the HCC with a hardened tilt plate to centralise and off axis load and provide a more stable load platform. Standard ranges are from 0-25 tonne to 0-1000 tonne. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
Our experts can help you select the right product for your application.
