Product Description

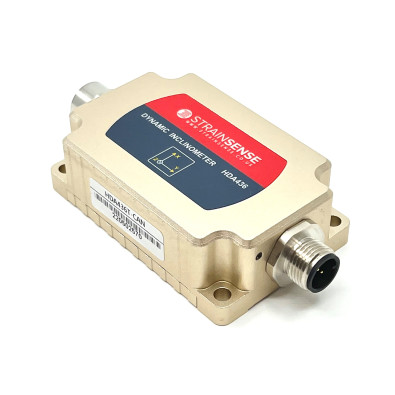

The HDA series is a high accuracy inclinometer using state of the art MEMS silicon technology. Coupled with proprietary digital algorithms (Roll, Pitch and Azimuth) for linearity correction, cross axis error and Kalman Filtered movement stability algorithm.

Unlike static inclinometers which are affected by accelerations, the HDA uses internal Accelerometer and Gyroscope sensors which enable the unit to be configured as an Inertial Measurement Unit giving outputs for each individual element or as an inclinometer giving calculated angular and azimuth outputs without being affected by dynamic movements.

Enclosed in a high-quality aluminium anodised case with a fully potted design and IP67 connector for ease of installation. Resistant to magnetic interferences with virtually real-time output and non-contact operating principles. Customisable measurement ranges and a number of Digital output options makes it versatile in many measurement applications and is also able to be Daisy-chained (only with CAN output) saving on cable requirements for multiple sensor arrays.
