Hermetically sealed LVDT
Product Description

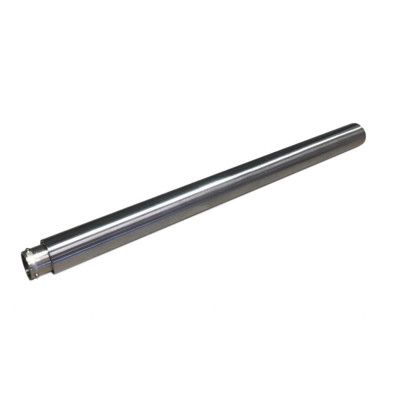

The NewTek HI Series sensors are rugged hermetically sealed 4-20 mA LVDTs with excellent linearity, high resolution, and superior repeatability. These sensors are constructed of ¾ inch diameter stainless steel and manufactured for general industrial use. Electrical connection is made through an axial mounted connector. Designed for a wide range of position measurement applications, they are available in ranges of 0.1 inches (2.54mm) to 20 inches (500mm). In addition to being sealed to IP-68, the HI Series windings are potted inside the housing with a 2 component epoxy, providing excellent protection against hostile environments.

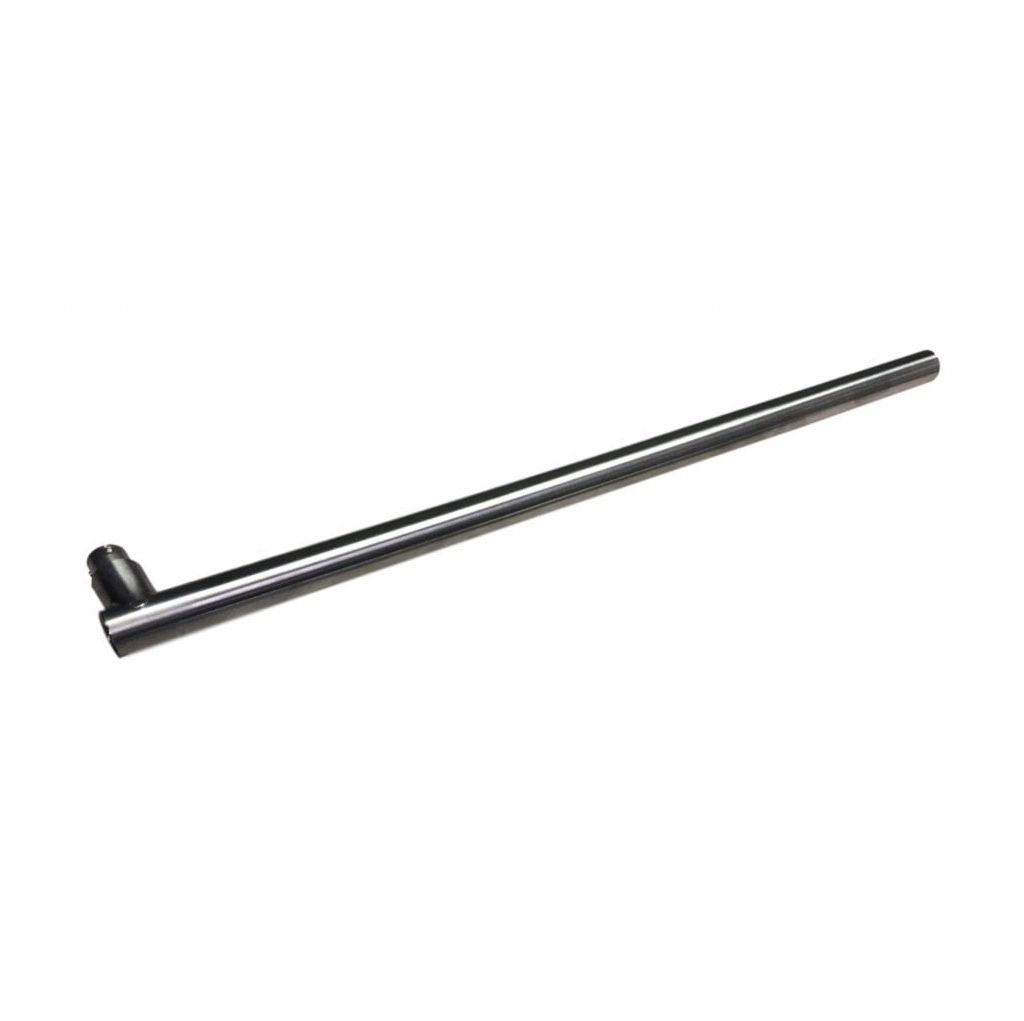

The NewTek HIR Series sensors are rugged hermetically sealed 4 20 mA LVDTs with excellent linearity, high resolution, and superior repeatability. These sensors are constructed of ¾ inch diameter stainless steel and manufactured for general industrial use Electrical connection is made through a radially mounted connector, resulting in a reduced housing length Designed for a wide range of position measurement applications, they are available in ranges of 0.1 inches (2.54 mm) to 20 inches (500 mm) In addition to being sealed to IP68 the HIR Series windings are potted inside the housing with a 2 component epoxy, providing excellent protection against hostile environments
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
