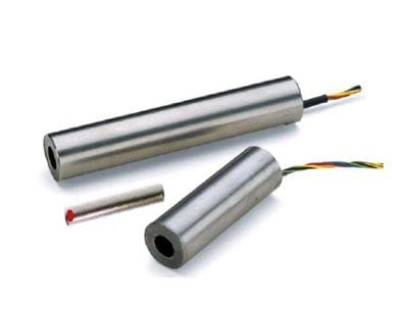

HR series LVDT

Product Description

The HR Series general purpose LVDTs provide the optimum performance required for a majority of applications. The large 1/16 inch [1.6mm] bore-to-core radial clearance provides for ample installation misalignments and therefore reduces the application costs. Featuring a high output voltage and a broad operating frequency range, these versatile and highly reliable LVDTs deliver worry-free and precise position measurements. Available in a variety of stroke ranges from ±0.05 to ±10 inches, the HR Series can be configured with a number of standard options including guided core, small diameter/low mass core. High temperature (200ºC) operation and Mild Radiation Resistance versions are also available. The HR Series is compatible with the full line of Measurement Specialties LVDT signal conditioners. Like in most of our LVDTs, the HR windings are vacuum impregnated with a specially formulated, high temperature, flexible resin, and the coil assembly is potted inside its housing with a two-component epoxy. This provides excellent protection against hostile environments such as high humidity, vibration and shock.
