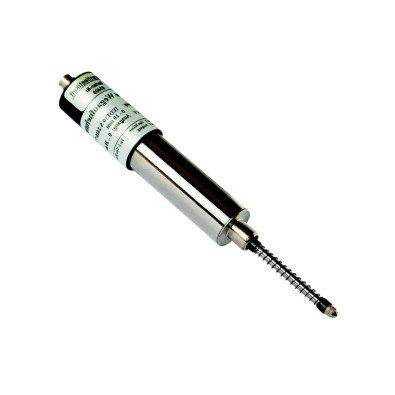

Economy Analogue LVDT Spring Return
The IEDT is an LVDT with integrated electronics offering analogue output signal options of 0-10 V, 0-20 mA or 4-20mA. Range options are 2mm (+/-1mm) to 50mm (+/-25mm) stroke lengths. The body diameter is 20mm and supplied with an integral Binder M9 connector. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP65, extended temperature ranges, calibration, cable lengths above 1M or even external electronics. Accessories include armature extensions, mounting blocks, contact tips.
Our experts can help you select the right product for your application.
