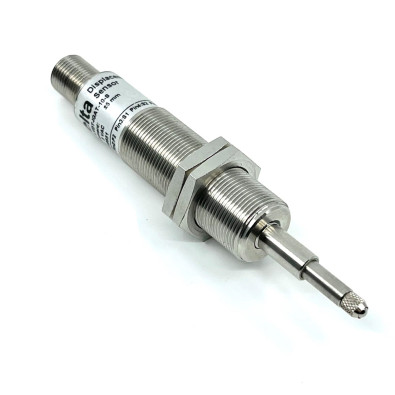

AC LVDT with spring return M18 external thread
The model IGAT is an AC coupled sprung loaded LVDT to be used with an appropriate LVDT signal conditioner. The body of the LVDT has an external M18 thread, allowing easy fitting and adjustment. Range options are 2mm to 20mm stroke lengths with a spring return system. LVDT can be supplied with either a cable or integral M12 connector. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP68 for submersible LVDT applications, extended temperature ranges, calibration, spring loaded, cable lengths above 1M or even external electronics.
Our experts can help you select the right product for your application.
