Product Description

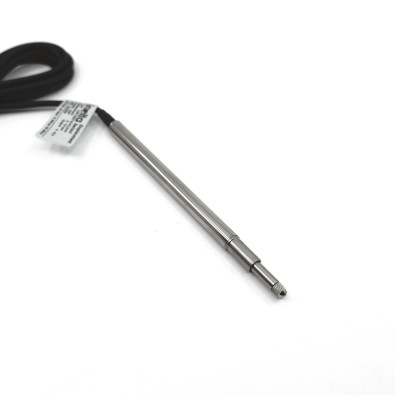

The IKDT is an LVDT with integrated electronics offering analogue output signal options of 0-5V or 0-10 V. The body of the LVDT is incredibly small at 8mm diameter and has range options of 2mm, 5mm, 10mm & 20mm with a spring return system. The output is via an integral cable 1 metre as standard. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP68 for submersible LVDT applications, extended temperature ranges, calibration, spring loaded, connector fitment, cable lengths above 1M or even external electronics.

IKDT now in stock available to purchase on Strainsense Store.
