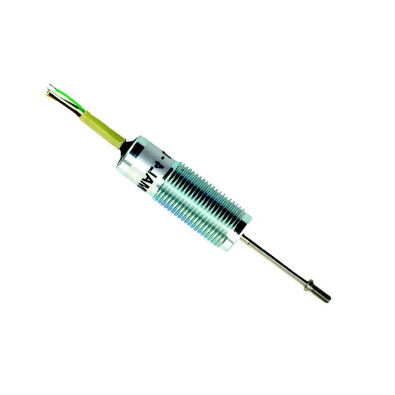

Short stroke LVDT M12 external thread
The IMAL is an AC coupled LVDT with non guided armature, to be used with an appropriate signal conditioner. The body of the LVDT has an external M12 thread, allowing easy fitting and adjustment. Range options are (+/-1mm) 2mm to (+/-10mm) 20mm stroke lengths with a non guided armature. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP68 for submersible LVDT applications, extended temperature ranges, calibration, spring loaded, cable lengths above 1M or even external electronics.
Our experts can help you select the right product for your application.
