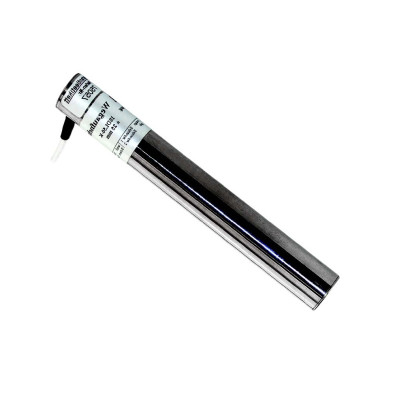

LVDT with integral connector option
The ISDL is an LVDT with integrated electronics offering analogue output signal options of 0-5V, +/-5V, 0-10 V, +/-10V, 0-20 mA or 4-20mA. Measurement Range options are 2mm (+/-1mm) to 200mm (+/-100mm) stroke lengths. The ISDL has a 20mm diameter body and available with either cable or an integral Binder connector. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP68 for submersible LVDT applications, extended temperature ranges, calibration, spring loaded, cable lengths above 1M or even external electronics.
Our experts can help you select the right product for your application.
