Product Description

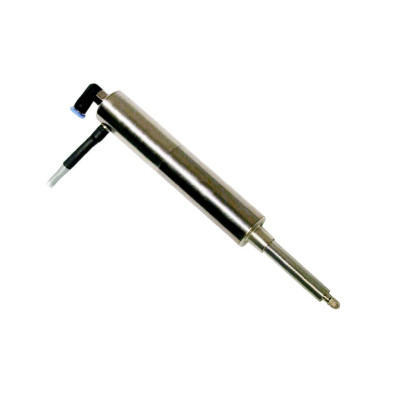

The ISDP is an LVDT with integrated electronics offering analogue output signal options of 0-5V, +/-5V, 0-10 V, +/-10V, 0-20 mA or 4-20mA. The body of the LVDT has a 20mm diameter, allowing easy fitting and adjustment. Range options are 10mm (+/-5mm) to 50mm (+/-25mm) stroke lengths with a pneumatic air connection system requiring 2-3 bar of pressure for full extension. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP68 for submersible LVDT applications, extended temperature ranges, calibration, spring loaded, cable lengths above 1M or even external electronics.
