Product Description

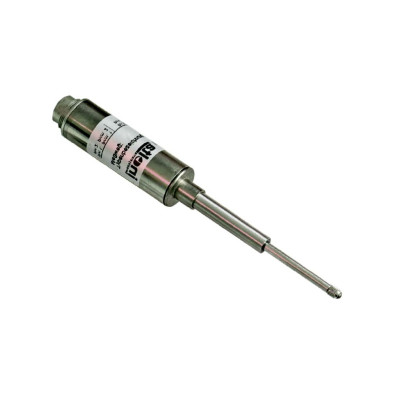

The ISDT is an LVDT with integrated electronics offering analogue output signal options of 0-5V, +/-5V, 0-10 V, 0-20 mA or 4-20mA. The body of the LVDT is 20mm diameter and has options for either cable or integral electrical connector, allowing easy fitting and adjustment. Range options are +/-1mm (2mm) to +/-25mm (50mm) stroke lengths with a spring return system. The series is offered with all the relevant options such as mounting blocks, captive cores however can be customised to suit your application. Options include higher accuracy, IP ratings to IP68 for submersible LVDT applications, extended temperature ranges, calibration, spring loaded, cable lengths above 1M or even external electronics.
