Isolated advanced counter Module TRION-CNT-6-L1B

Isolated advance counter module

6 counters or 18 digital inputs
Sampling 2MS/s per channel
Encoder, events, frequency, pulse width
X1, X2, X4, A-Up/B-Down modes

Categories: Digital Modules Digital Modules Data Acquisition DAQ Systems Input Modules Power Analyzers Additional Input Modules

Product Description

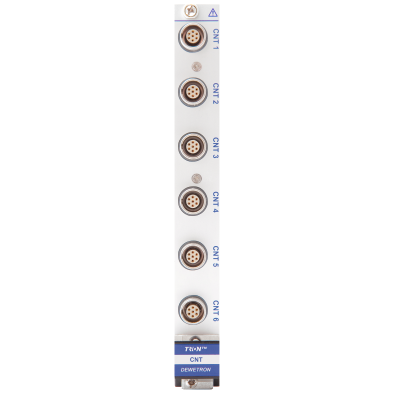

The TRION-CNT-6-L1B module supports 6 advanced counter / encoder inputs or 18 digital inputs. Threshold level is programmable for every channel. Supported modes are encoder, events, frequency, and pulse width measurement. Encoder modes supported are X1, X2, X4 and A-Up/B-Down. The module has 6 Lemo 1B connectors.

Sample rate is from 100S/s to 2MS/s per channel. All channels have channel to channel and channel to ground isolation.

Regulated 5V and 12V DC power supplies are available on each channel to power sensors.

The TRION-CNT-6-L1B module is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
