IZAL LVDT miniature diameter

Miniature diameter LVDT AC Output

Ranges from 2mm to 10mm
Output via Signal Conditioner
0.5% linearity as standard
IP65 ingress protection

Categories: LVDTs LVDTs AC Output Sensors Miniature LVDT AC

Product Description

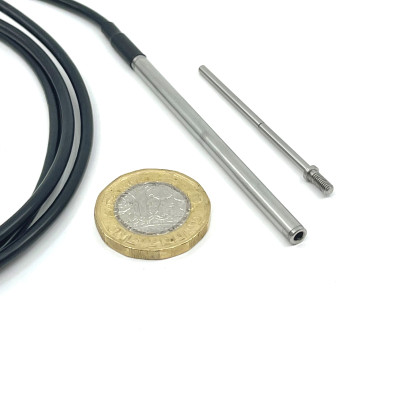

The IZAL is an LVDT with one of the smallest diameter at 4mm and combines an ingress protection rating of IP65. Measuring ranges are 2mm (+/-1mm) to 10mm (+/-5mm) with an AC output. The LVDT should be combined with a signal conditioner to convert from AC output to an analogue output. The unit can be customised however comes as standard in 3 ranges, accuracy of 0.5% and design temperature of -25 to 85 Deg C. Customised options include cable lengths, ranges, IP ratings, extended temperature ranges and improved linearity.

IZAL now in stock available to purchase on Strainsense Store.
