Product Description

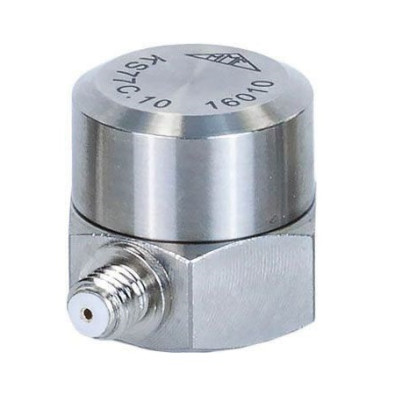

The KS76/KS77 IEPE Accelerometers are designed for general purpose applications, however still maintains a very wide dynamic frequency range to 37 kHz combined with a low temperature coefficient and high resonant frequency. Also feature a low sensitivity to temperature transients or base bend effects. The mounting is via a M5 stud at the base of the sensor, with a Stainless Steel casing. Electrical connection of UNF 10-32. KS76C has a top mount electrical connector, KS77C side mount connector. The sensor can be provided as a stand alone sensor, or combined with cable assembly and mounting fixtures including options of adhesive wax, insulating adhesive pad, insulated flange, thread adapter, magnetic base or adapter for curved surfaces. All accessories are available separately on request.

KS76C now in stock available to purchase on Strainsense Store
