IEPE Accelerometer for high frequencies
Product Description

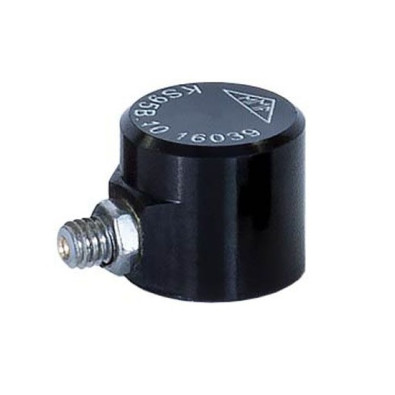

The KS94/95 IEPE Accelerometers are designed for applications where size and mass is important, however still maintains a very wide dynamic frequency range to 35 kHz combined with a low temperature coefficient and high resonant frequency. The mounting is via a M3 stud at the base of the sensor, with a Stainless Steel/Aluminium casing. Electrical connection of M3 KS94C has a top mount electrical connector, KS95C side mount connector. The KS94L accelerometer is specifically aimed at battery powered applications with power saving requirements. The sensor can be provided as a stand alone sensor, or combined with cable assembly and mounting fixtures including options of adhesive wax, insulating adhesive pad, insulated flange, thread adapter, magnetic base or adapter for curved surfaces. All accessories are available separately on request.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
