Product Description

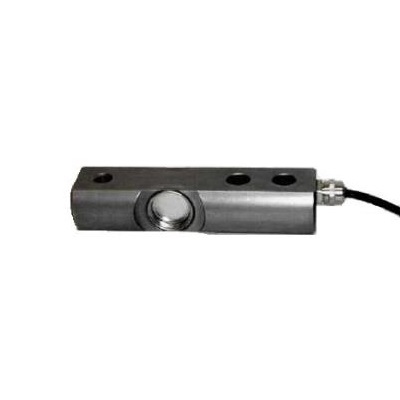

The LBS load beam series are shear beam load cells design for high accuracy measurement of force or weighing applications in medium to high measurement ranges. Typically used in multiple points of around a vessel or application, each unit has its output rationalised to be almost identical to the next unit. This allows them to be wired into junction boxes or summation boxes with almost no adjustment required. Standard ranges are from 0-250KG to 0-10t. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
