Product Description

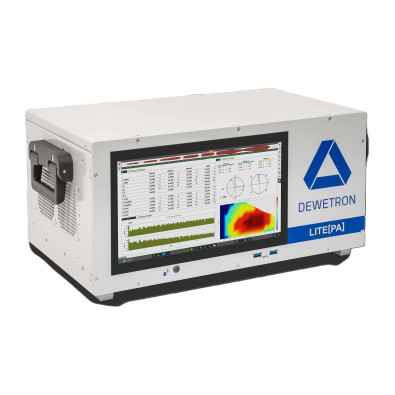

The LITE-PA power analyzer is available with 4 or 8 power channels, ensuring high-precision measurements. It is compatible with all common current sensors, provides standard inputs for speed and torque, and offers seamless data exchange via CAN, Ethernet and USB. Ideal for laboratory use, test stand, or end-of-line applications.

The LITE-PA features 4 or 8 fixed high-voltage inputs and 4 or 8 selectable sub-modules to connect all state-of-the-art current sensors. The fixed inputs for high-voltages offer a range of ±2000V PEAK, a 5 MHz bandwidth, a 2 MS/s sampling rate and a CAT III 1000 V safety class. The current inputs have 1A RMS (±2A PEAK) measurement range and are the ideal solution for current measurements with zero flux transducers. Other submodules for current measurements with current clamps or direct current measurements are available as well.

The LITE-PA is equipped with 2 advanced counter inputs to support speed measurement with encoders and 2 basic counter inputs for torque sensors providing a frequency output signal. This allows mechanical power measurements, efficiency analysis and online efficiency mapping when working with the LITE-PA.

The LITE-PA comes with our easy-to-use OXYGEN software. Within a minute, the basic measurement setup is ready, e.g. a 6-phase system with 1000 A current transformers, and all typical power parameters can be displayed and saved. Design your own views by choosing from a variety of displays and assigning signals using drag and drop. Additional online data processing such as mathematics, special statistics, filtering, etc. is possible at any time. Also, the efficiency map of a drivetrain can be calculated and displayed directly during the measurement. For offline analysis and reporting tasks, the software can be installed licence free on any number of analysis PCs.

The power accuracy of LITE-PA is stunning. Compared to other Power Analyzers available on the market, it offers a constant power accuracy of 0.04 % from 0.5 Hz to 1000 Hz fundamental frequency. Moreover, it comes with a factory calibration certificate and can be calibrated according to ISO 17025. High-precision measurements over a wide frequency range are an easy task with the LITE-PA and central requirement for test stand applications.

The LITE-PA is ready to be easily integrated into a wide variety of host systems. Data transfer to the testbed control can be easily realized by using the protocols SCPI, Ethernet UDP or CAN. XCP is available on request. The remote configuration and control of the LITE-PA is ensured by a powerful SCPI command library to, e.g. load predefined setups, edit the channel configuration or make trigger settings.

The LITE-PA power analyzer impresses with a very intuitive user interface for direct device operation, e.g. in laboratory use. It has a bright 11.6” multi-touch Full HD display for quick and easy operation. You can operate our intuitive OXYGEN measurement software via simple multi-touch gestures and smart visuals, just like on a smartphone. Alternatively, you can connect a keyboard and a mouse too.

Expand your LITE-PA power analyzer with our low-speed XR modules for the acquisition of temperature, current, voltage or RTD. All different types support either RS-485 or CAN data output. The output type can be programmed by the user. Each of the 8 measurement channels has its own A/D converter with a sampling rate of up to 200 Hz.
