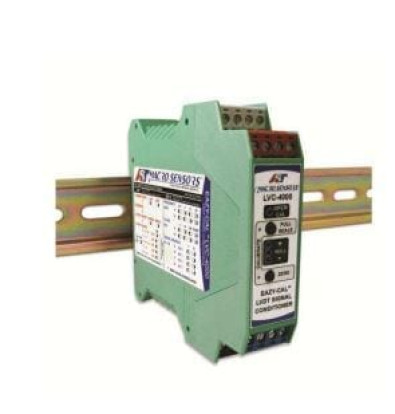

LVC-4000 signal conditioner

Product Description

Obsolete, replaced by the NTC-6000 LVDT signal conditioner.

The model LVC-4000 is a standalone signal conditioner, supporting a wide range of AC LVDTs, RVDTs, and VR half-bridges, while providing several choices of voltage, current, and digital RS-485 outputs. Push-button calibration offers intuitive operation as compared to signal conditioners with span and offset trim pots. Fault conditions, such as a wire break on LVDT/RVDT connections, are indicated by blinking LEDs, fault condition error output, and Error Flag Open Collector signal (see manual for details).

The LVC-4000 operates from a 9-30V DC power supply and is housed in a polyamide DIN railmounted enclosure. Calibration instructions, terminal functions, LVDT connection diagram and DIP switch functions are printed on the side panels for convenience.
