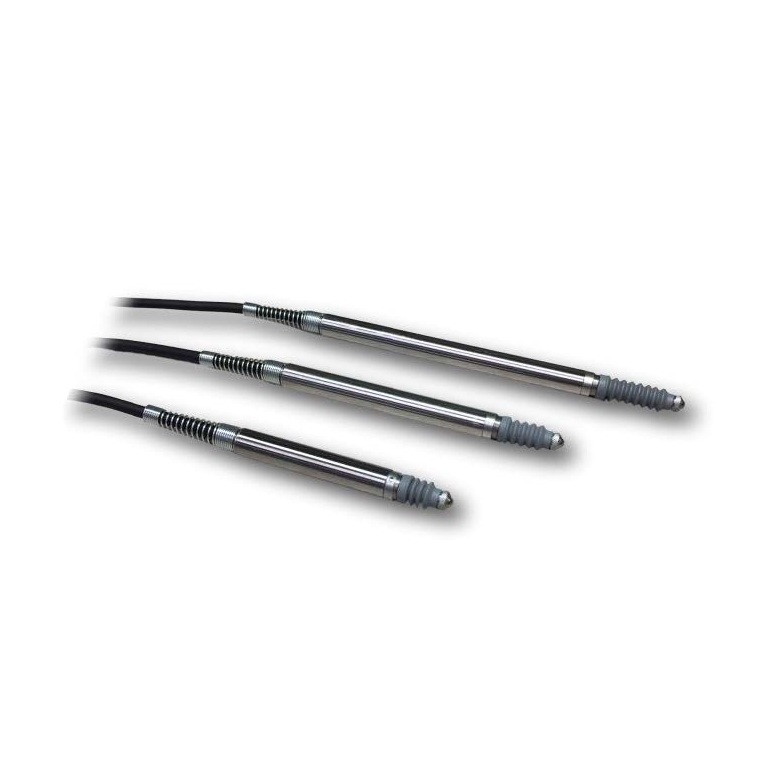

MBB-315 Series

Miniature diameter LVDT AC Output

Ranges from 1mm to 5mm
Output mV/V
0.5% linearity as standard
IP65 ingress protection

Categories: Sensors Position Sensors LVDTs Miniature LVDT AC

Product Description

The NewTek MBB Series gaging probes are spring loaded AC LVDTs with excellent linearity, great precision and infinite resolution. Construction consists of stainless probe assembly and 8 mm diameter housing protecte d to IP 65 Designed for
a wide range of position measurement and dimensional gaging applications, they are available in ranges 040 in 1 0
mm), 0 100 in 2 5 mm), and 0 200 in 5 mm) The MBB Series features high precision linear ball bearings for smooth
probe movement without stiction and excellent repeatability.
