Product Description

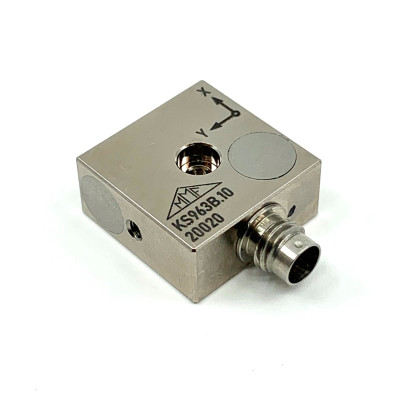

The MMF KS963 Triaxial IEPE Accelerometer is a shear design in an easy to use and configure package with range options of +/-60g  or +/-500g. The IEPE sensor has a very high resolution with low temperature coefficient 60g version having 100 mV/g and the 500g version 10 mV/g. All are TEDS IEEE 1451.4 enabled.

The KS963 is compact at 19.2mm and 8.6mm deep with an M3 stud and 1/4-28 UNF male electrical connector made in Nickel plated Aluminium making it robust and hard wearing for long term use.

Can be provided as a IEPE triaxial sensor only or as a kit which includes several accessories including cable assembly, mounting studs, thread adapters, rare earth magnetic bases and adhesive pads etc.

Excellent for general testing requirements, supplied with a 2 year calibration certificate.
