PROGRAMMABLE VIBRATION MONITOR DIN-RAIL

Universal Vibration Monitor

Rotating Machinery
Bearing Vibration
Emergency Shut Off or Alarm Trip
Sound Monitoring

Categories: Accelerometers Accelerometer Signal Conditioners Signal Conditioning Amplifier Accessories Sensors

Product Description

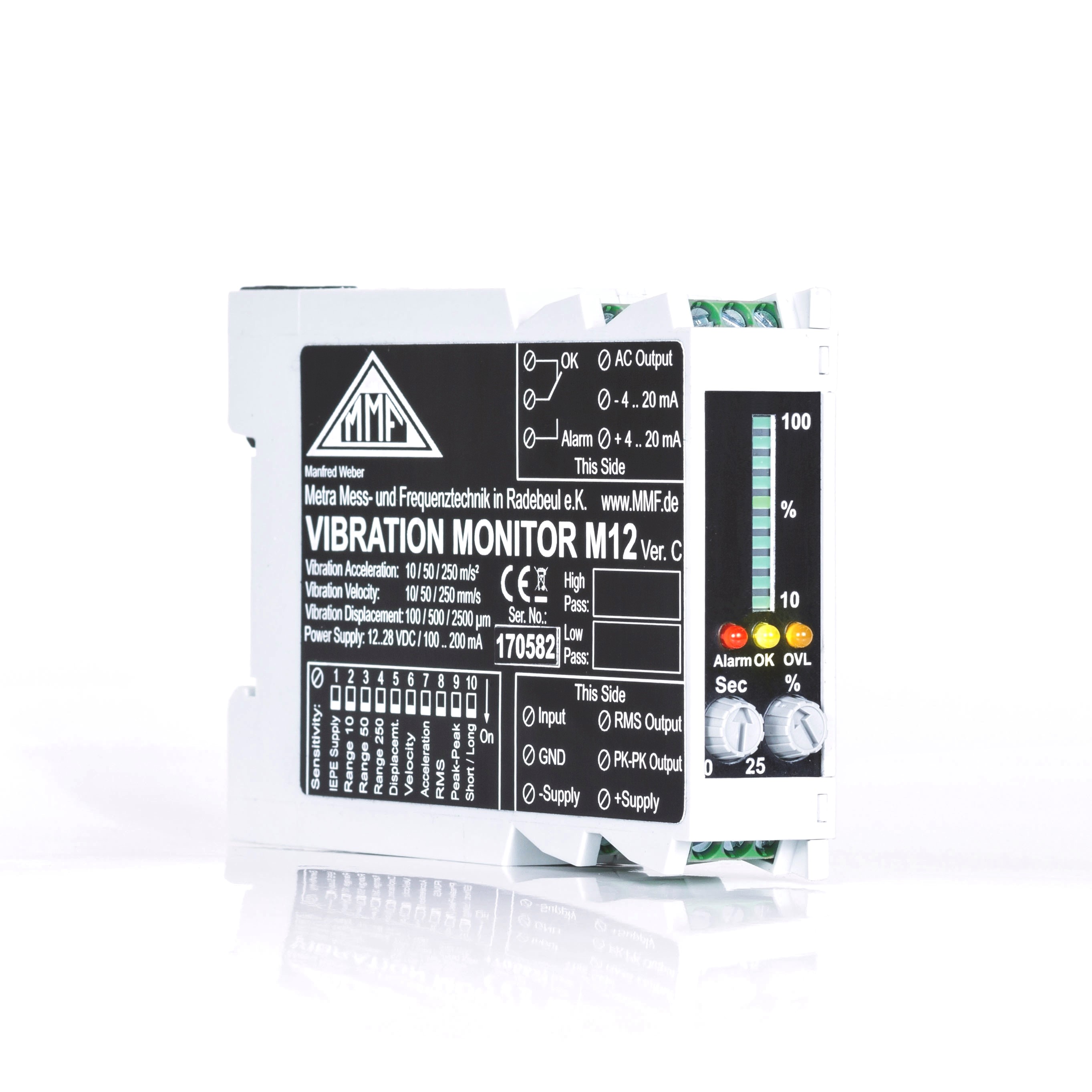

The M12 is a DIN RAIL mounted machine health monitor designed specifically for Acceleration, Velocity, Displacement and Sound Level (using IEPE compatible microphones). There are several options including the M12DIS which is a LED display option and BNC module to allow easy interfacing.

The M12 allows simple monitoring of bearing vibration by means of RMS values, crest factor, emergency shut-off or alarm trip functions in case of increased vibrations outside of tolerance limits.

Ideal for pumps, compressor, centtrifuges, ventilators, mills & mixers.

The monitoring of vibration severity complies to ISO 20816-1 and reciprocating engines to ISO 10816-6.

Applications

Monitoring of vibration velocity (severity) of rotating machinery to ISO 20816-1 and reciprocating engines to ISO 10816-6.
Monitoring of bearing vibration, for instance by means of RMS values, crest factor or Diagnosis Coefficient DK(t)
Emergency shut-off or alarm tripping in case of increasing vibration
Typical machines to be monitored are pumps, compressors, centrifuges, ventilators, mills, and mixers
Sound level monitoring using IEPE compatible microphones
Production quality control
