MIL-STD-1553 Interface

Product Description

MIL-STD-1553 is a military standard published by the United States Department of Defense that defines the mechanical, electrical, and functional characteristics of a serial data bus. It was originally designed as an avionic data bus for use with military avionics but has also become commonly used in spacecraft on-board data handling (OBDH) subsystems, both military and civil.

It features multiple (commonly dual) redundant balanced line physical layers, a (differential) network interface, time division multiplexing, half-duplex command/response protocol, and can handle up to 30 Remote Terminals (devices).

Our Oxygen measurement software offers hardware support of MIL 1553 boards. This feature is beneficial for the aerospace & defense sector.

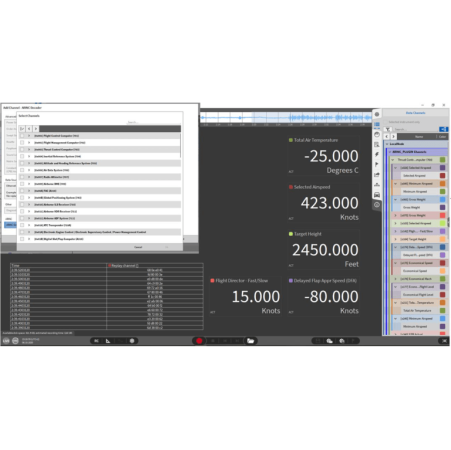

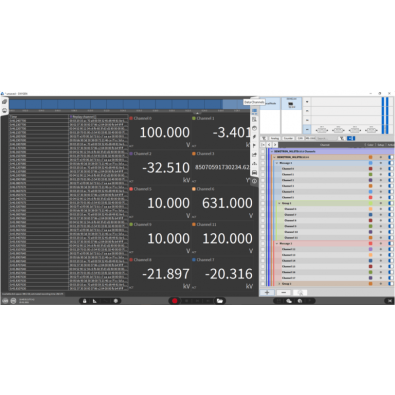

The decoded MIL-STD signals can be used in instruments like a recorder, digital meter or table. Just drag and drop the desired channel into the instrument to display the decoded values.

The MIL-STD-1553 interface for Oxygen is included with TRION-MIL1553-1 and TRION-MIL1553-4 modules.
