Model 85 constant voltage

Pressure capsule, constant voltage

Range 0-5 to 0-500 psi g, abs
Output 0 - 100mV
Accuracy 0.25% FS
Temperature Compensated

Product Description

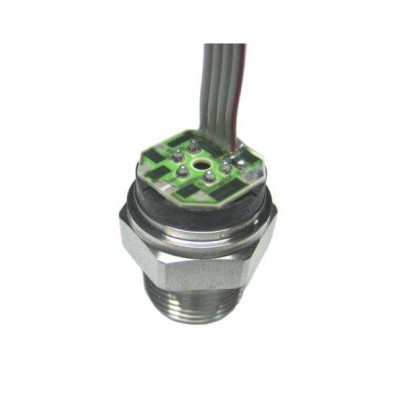

The model 85 constant voltage is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 85 constant voltage is offered in a weldable package or with a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings.

The 85 constant voltage is designed for OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.

Within the range are additional options of constant current and uncompensated versions. Please contact us for these details.
