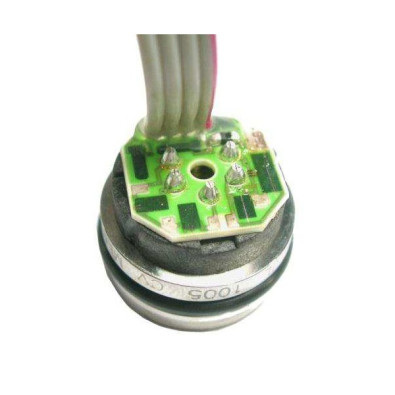

Model SA86 Pressure Sensing Element

Product Description

The SA86 is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 86 constant voltage is designed for O’ring mounting and OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser trimmed resistors for temperature compensation and offset correction.

Within the SA86 series there are options of constant voltage, constant current, uncompensated or digital I2C output – please contact us for more information.

Typical delivery for the SA86 is 7-8 weeks however can be expedited on request.

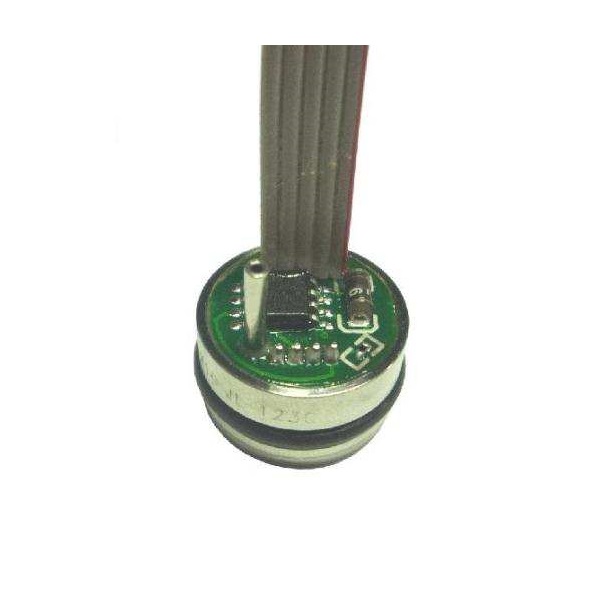

86-005A-C, 86-005A-P, 86-005A-R, 86-005G-C, 86-005G-P, 86-005G-R, 86-005G-RT, 86-005G-U, 86-015A-C, 86-015A-L, 86-015A-P, 86-015A-R, 86-015A-U, 86-015G-CT, 86-015G-P, 86-015G-R, 86-015G-RT, 86-015V-R, 86-030A-C, 86-030A-R, 86-030A-U, 86-030G-C, 86-030G-CT, 86-030G-R, 86-030V-C, 86-050G-R, 86-050G-RT, 86-100A-R, 86-100A-U, 86-100G-C, 86-100G-P, 86-100G-R, 86-100V-R, 86-300A-C, 86-300A-R, 86-300G-C, 86-300G-R, 86-300G-RT, 86-500A-R, 86-500G-C, 86-500G-R, 86CV-005G-C, 86CV-005G-R, 86CV-015G-P, 86CV-030G-P, 86CV-030G-R, 86CV-050A-R, 86CV-100G-R, 86CV-300G-C, 86CV-500G-R, 86BSD001PG-3BIR, 86BSD005PG-3AIC, 86BSD007BG-3BICL, 86BSD007BG-3BJCL, 86BSD010BG-3BICL, 86BSD010BG-3BJCL, 86BSD015PA-3AIC, 86BSD015PG-3AIC, 86BSD030PA-3AIC, 86BSD050PA-3BIRL, 86BSD100PA-3AIPL, 86BSD100PG-3AICL, 86BSD150PA-3ASRL, 86BSD300PA-3ASRL
