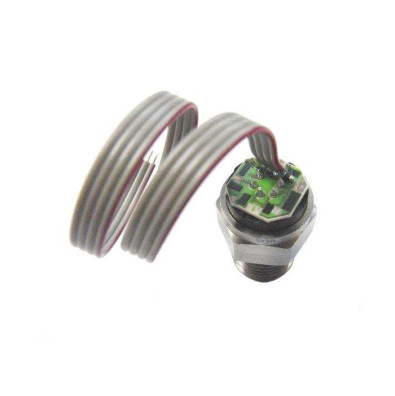

Model SA89 Miniature Pressure Sensing Element

Product Description

The SA89 constant voltage is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 89 constant voltage features 5/16-32 UNEF threads and can be welded in place. It can also be packaged in a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings. Contact us for threaded fitting options.

The SA89 constant voltage is designed for high pressure OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.

Within the SA89 series there are Constant current (CC), Constant Voltage (CV), Uncompensated and Digital I2C output - please contact us for more information.

Typical delivery for the SA89 is 7-8 weeks however can be expedited on request.

89-01KA-0C, 89-01KA-0P, 89-01KA-0R, 89-01KA-0U, 89-01KA-1U, 89-01KA-4R, 89-01KS-0R, 89-01KS-4R, 89-03KA-0P, 89-03KA-0R, 89-03KA-0U, 89-03KA-1U, 89-03KA-8C, 89-03KS-0C, 89-03KS-0R, 89-03KS-4R, 89-05KA-0C, 89-05KA-0P, 89-05KA-0R, 89-05KA-0U, 89-05KS-0C, 89-05KS-0R, 89-05KS-4R, 89-10KA-0P, 89-10KA-0U, 89-10KS-0C, 89-10KS-0R, 89CV-01KA-0C, 89CV-01KS-8R, 89CV-03KA-0R, 89CV-03KA-3R, 89CV-03KS-4R, 89CV-05KA-0P, 89CV-05KA-0R, 89CV-05KS-0R, 89CV-05KS-4R, 89CV-10KA-1R, 89CV-10KS-4R, 89CV-10KS-8C, 89CV-10KS-8R, 89BSD-006BA-A, 89BSD-006BA-A, 89BSD-012BA-B, 89BSD-018BA-A, 89BSD-018BS-A, 89BSD-028BA-B, 89BSD-030BA-5, 89BSD-030BA-A, 89BSD-030BA-B, 89BSD-030BS-A, 89BSD-030BS-B
