Model SADP86 series silicone oil

Product Description

This model DP86 has been replaced by the SADP86, see drawing enclosed.

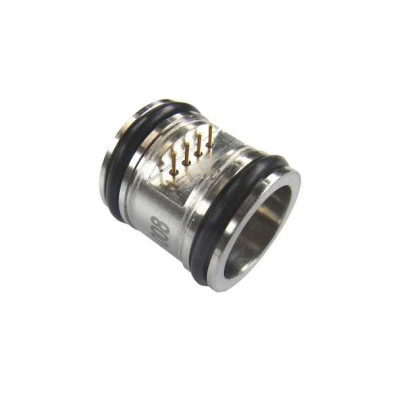

The model SADP86 differential pressure sensor is a double-sided, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The SADP86 is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the two 316L stainless steel diaphragms to a single sensing element. The SADP86 is designed for high performance, low pressure applications where differential pressure measurement is required. The stainless steel package makes it suitable for use in liquids and corrosive environments. Please refer to the SADP86 uncompensated, non-silicone oil, constant current and constant voltage (fittings and cable design) for more information on different features of the SADP86.

SADP86-xxxD                     Constant current with pin-out

SADP86-XXXX-0VX-Y        Constant voltage with compensation board & cable options

SADP86-XXXX-XVX-Y        Constant voltage with compensation board, cable, and pressure fitting options
