Product Description

MPM280TH pressure sensor has a similar outline, installation dimension and sealing method as the general MPM280 pressure sensor. For construction material, the isolated diagram uses tantalum, the housing uses Hastelloy C material. The sensor is sealed by FKM O-ring. It can be used to measure corrosive media. Pressure ranges from -1.0 bar/0 bar to 350 bar.

MPM280TS pressure sensor has similar outline, installation dimension and sealing method as the general MPM280 pressure sensor. For construction material, the isolated diagram uses tantalum material and housing uses stainless steel 316L material. The sensor is sealed by FKM O-ring. It can be used to measure corrosive media. The pressure range is -1.0 bar/0 bar to 350 bar.

MPM280HH pressure sensor has similar outline, installation dimension and sealing method as the general MPM280 pressure sensor. It uses all Hastelloy C material in construction, The sensor is sealed by FKM O-ring. It can be used to measure corrosive media. The pressure range is -1.0 bar/0 bar to 350 bar.

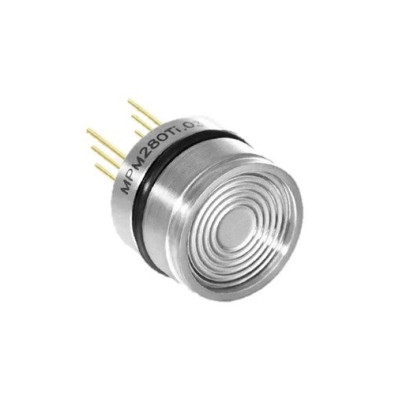

MPM280Ti pressure sensor has similar outline, installation dimension and sealing method as the general MPM280 pressure sensor. It uses all titanium material in construction, TC4 housing material and TA1 diaphragm. It can be used to measure sea water or corrosive media. The pressure range is -1.0/0 bar to 700 bar.

MPM 280Ti Pressure Sensor can be used in wet environments or sea water. Its corrosion resistant performance is far better than stainless steel. MPM280Ti has good corrosion resistance for pitting, acid etching, stress corrosion, alkali, chloride, chlorine-organism, nitric and vitriolic acids.
