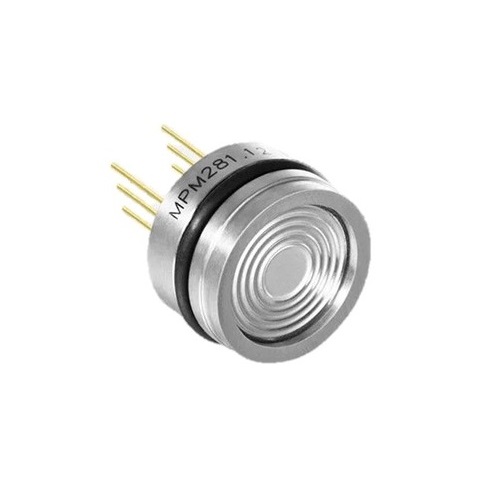

MPM281 Pressure Sensor mV Output 19mm

Product Description

The MPM281 Pressure Sensor is a high-stability silicon piezoresistive pressure sensing element with an isolated construction and precise temperature compensation. Utilizing a high stability diffused silicon die, the pressure is transmitted through the isolation diaphragm and internal medium, precisely converting the pressure to an electrical signal. The pressure sensor is packaged in a 19mm 316L Stainless Steel housing and FKM O’ring for sealing. The sensor is laser trimmed and precision compensated to include a zero-point deviation correction. Gauge versions up to 35 Bar G come with a rear vent tube as standard. The sensor is based on a constant current power supply. Pressure ranges from 0.07 (1 PSI gauge) to 1000 Bar (15k PSI), customisation available to include special oil fills for Oxygen service, O’ring materials, Compound ranges, lead-wires.

MPM281 can be a replacement for the Honeywell 19 series.

MPM281 now in stock available to purchase on Strainsense Store.
