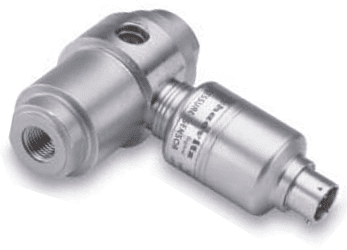

P2100 heavy duty

Product Description

This product is obsolete effective end of 2022, please contact us for more information

The model P2100 series of transducers is designed for differential pressure measurement of wet and/or corrosive fluids. There is a range of models with full range pressure from 10 psi D to 3,500 psi D. Common line pressures up to 5000 psi can be accommodated with minimal effect on the output and each port is equipped with over-pressure protection (up to 5 times range on P1). A selection of electrical outputs is available from 20 mV to 4-20 mA two wire the latter having the option of hazardous area approval. The P21X1 to P21X4 series is designed for use with fluids which can deposit some form of residue within a cavity and therefore the pressure ports can be removed for cleaning. The P21X6 to P21X9 series is an all welded construction with the wetted parts made from Hasteloy C-276 and Inconel 625, body material in Inconel 625. This instrument is designed to handle highly corrosive fluids but also has applications where size and weight are at a premium.
