High accuracy power analyzer

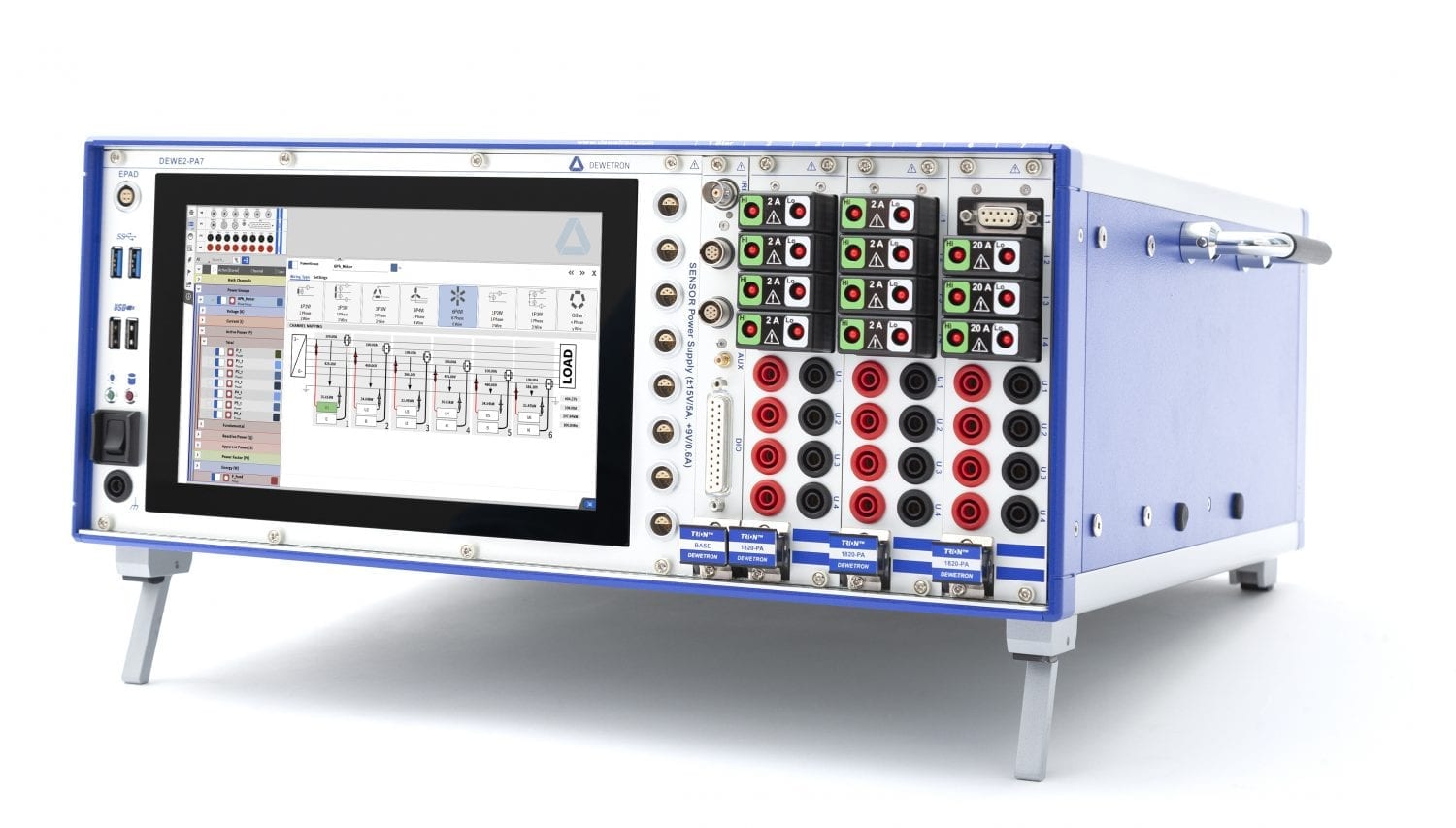

The DEWE2-PA7 power analyser is a high accuracy, precision power analyser, featuring high dynamic range inputs with a measurement range of 1000V RMS (2000V peak) and 20A RMS and guarantees a basic accuracy of 0.01 %. Up to 12 power channels and the capability for calculation of power parameters even for polyphase motors (up to 9 phases) turns the DEWE2-PA7 into a high accuracy, precision power analyser. Input modules can be added for speed and torque for synchronised mechanical power measurement, and vibration for NVH analysis. Low speed modules can be connected for temperature measurement in the same data set.
The internal data storage is a removable 1TB SSD with gap free storing rate of 90 MB/s for continuous waveform recording.
The chassis includes an integrated 8 channel current sensor power supply for simple test bed integration. It has a 9" full HD display for bench top use. Chassis interfaces include LAN, USB3 and Display Port for additional connectivity. Power supply is 100 to 240V AC.
The DEWE2-PA7 is the right tool for the design and testing of drive trains, electrical engines, motors, inverters and uninterruptible power supplies as well as electric and hybrid vehicles on a test bench.
